IntegraRack IR-40FSAA BallastRack Fixed Adjustable Angle Solar Module Rack - Aircraft Grade Aluminum

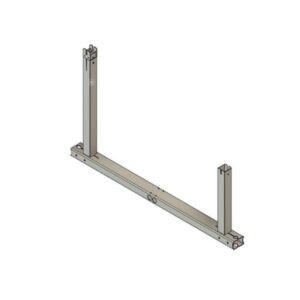

IntegraRack IR-40FSAA BallastRack Fixed Adjustable Angle

(Single Frame)

Fixed adjustable ground mount frame from 15-40 degrees in 2.5 degree increments. Can be installed almost anywhere with multiple mounting configurations available.

The IR-40FSAA sits 8" higher than our fixed systems for greater ground clearance and utilizes our own IR-F2 solar module bonding clamps (Included)

Included Hardware:

(4) IR-F2 Flange Clamp

(4) M8-1.25x90mm Carriage Bolts

(4) M8-1.25 Serrated Nuts

(4) M8-1.25x16mm Thread Cutting Bolts

Finish: Mill

Box Dimensions/Weight: 48x4x4" / 15Lbs
